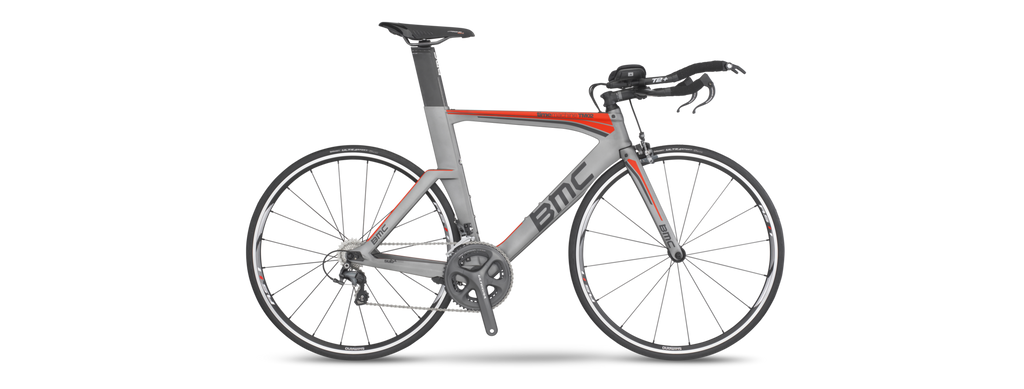

timemachine TM02 Ultegra


Technical Details

Specification

Geometry

Size S M - S M - L L
Stack mm 480 515 515 556
Reach mm 393 377 418 442
Seat tube st mm 503 540 540 582
Top tube tt‘ mm 504 496 537 570
Head tube ht mm 97 123 123 166
Seat angle sa ° 77 77 77 77
Head angle ha ° 71.5 71.5 71.5 71.5
Rear center rc mm 390-410 390-410 390-410 390-410
Front center fc mm 590 583 624 662
Wheelbase wb mm 971 964 1004 1042
BB drop mm 58 68 68 68
Fork length fl mm 364 364 364 364
Fork rake fr mm 50 50 50 50
Trail mm 60 60 60 60
Crank length mm 170 170 170 172.5
Stem length mm 90 90 100 110
Stem angle ° +/- 6 +/- 6 +/- 6 +/- 6
Bar width mm 400 420 420 420
Bar drop mm N / A N / A N / A N / A
Bar reach mm N / A N / A N / A N / A
Post length mm 325 325 325 325
Post offset mm +21 / +7 / -7 / -21 +21 / +7 / -7 / -21 +21 / +7 / -7 / -21 +21 / +7 / -7 / -21
Stand over height mm 753 778 779 820

Concept

Applied aerodynamics

The SubA concept summarizes the aerodynamic advantages: truncated tubes strike a balance between the aerodynamically optimal shape and maximum rigidity. The tripwire technology is a stepped profile running along the leading edge of the frame tubing. The goal is to better control the airflow around the profiles and delay separation of the boundary layer from the tube surface – the same effect is generated by the dimples on a golf ball. Additionally, the lean front surface area of the Timemachine TM02 minimizes aerodynamic resistance.

Advanced integration

Uncompromised integration of frame, fork and components dramatically improves aerodynamic performance. The powerful brake calipers are cleanly tucked into the shape of the fork and chain stays, the seatpost is fixed by a hidden clamping mechanism, the battery unit needed for electronic groupsets is integrated into the seat tube, and all other electronic components disappear almost entirely into the frame.

Position to perform

BMC rounds off the technical characteristics of the Timemachine TM02 with maximum adjustability of the seatpost and stem. Thanks to this clever system (position to perform, or p2p for short) the conflict between aerodynamics and the rider’s natural biomechanics can be minimized. The integrated stem offers 32 different positioning options for the handlebar, while the seatpost can be set at a virtual seat tube angle ranging from 72 to 82 degrees with four additional saddle clamp positions. Having the possibility to always find the right fit means the TM02 is the perfect time trial or triathlon bike.

On-trend

The BMC Dual Transmission integration (DTi) allows assembling the same frame with your choice of either electronic or mechanical groupsets without losses in aesthetics or aerodynamics.

Race-ready

Except for the large-sized frameset, the TM02 is UCI compliant and ready to hit the start line.

Frame

  •  p2p×SubA full carbon construction
  • Frame weight: 1360 g
  • DTi cable routing, compatible with mechanical and electronic groupsets
  • Integrated rear brake
  • Internal Di2 battery

Bottom bracket

  •  BB30

Fork

  •  Aero fork, SubA full carbon construction
  • 1–1/8" steerer tube

Seatpost

  • Aero post, p2p×SubA full carbon construction

Frame sizes

  •  4 sizes: small, medium short, medium long, large (details see geometry chart)
